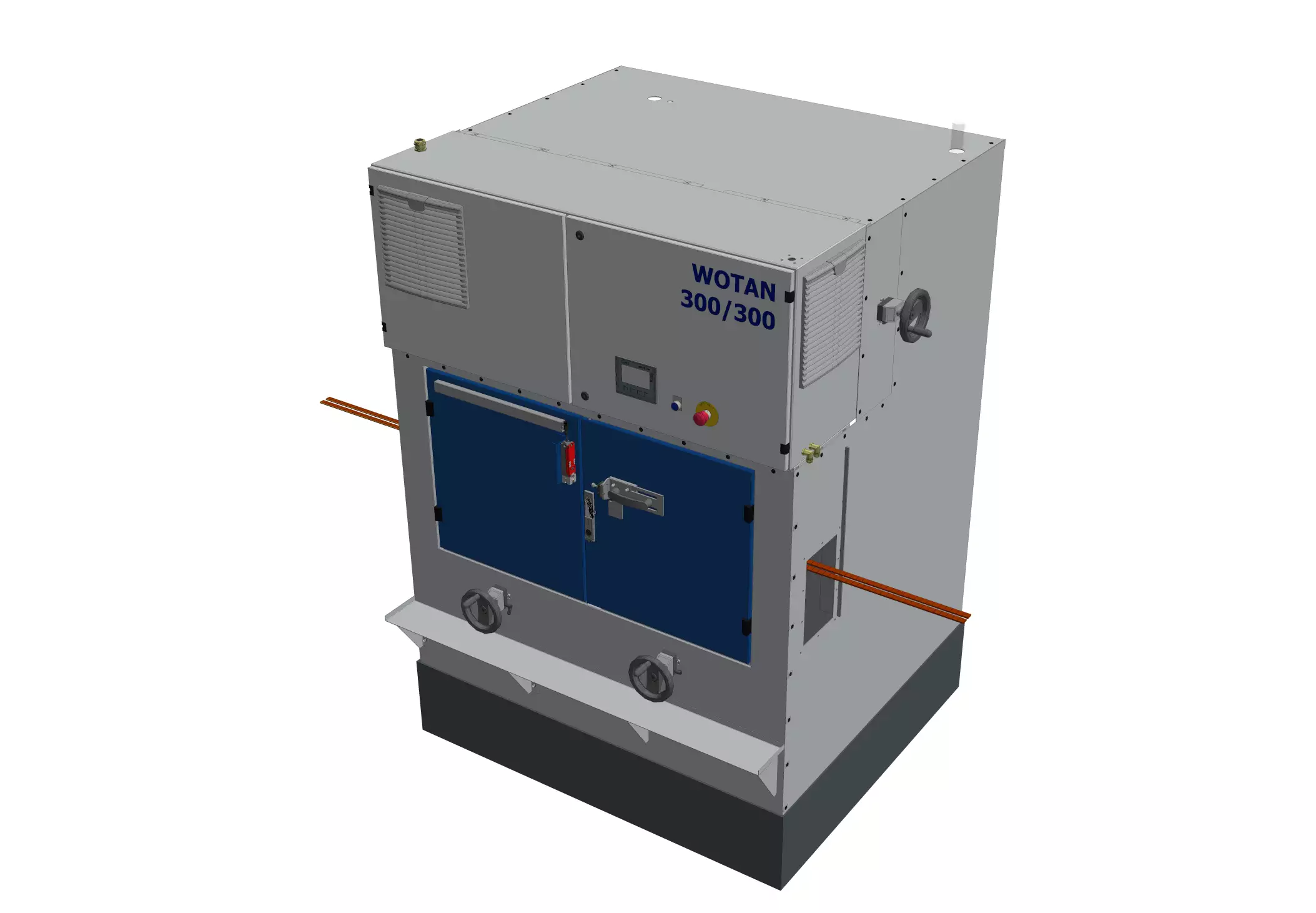

WOTAN 300/300

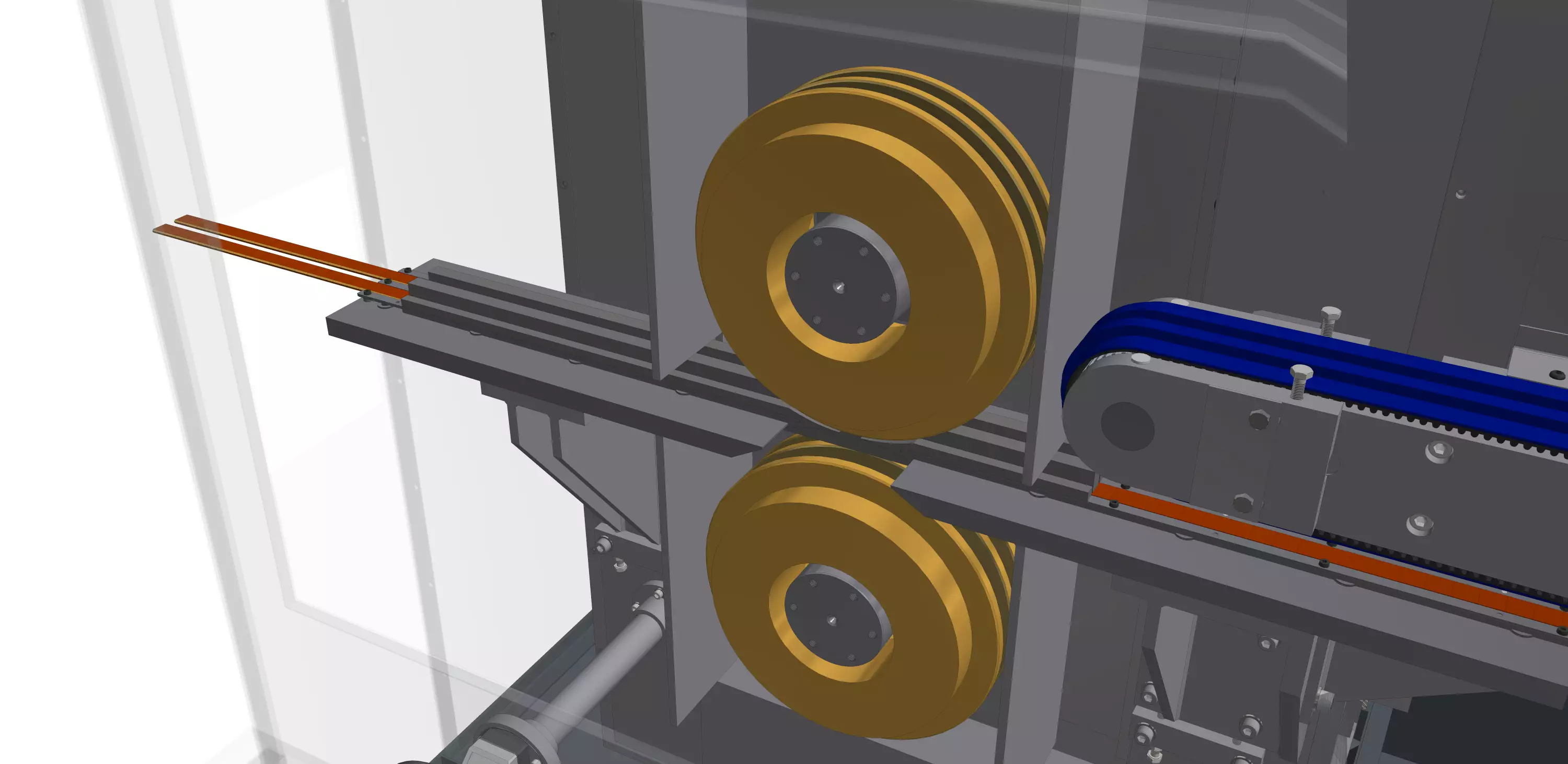

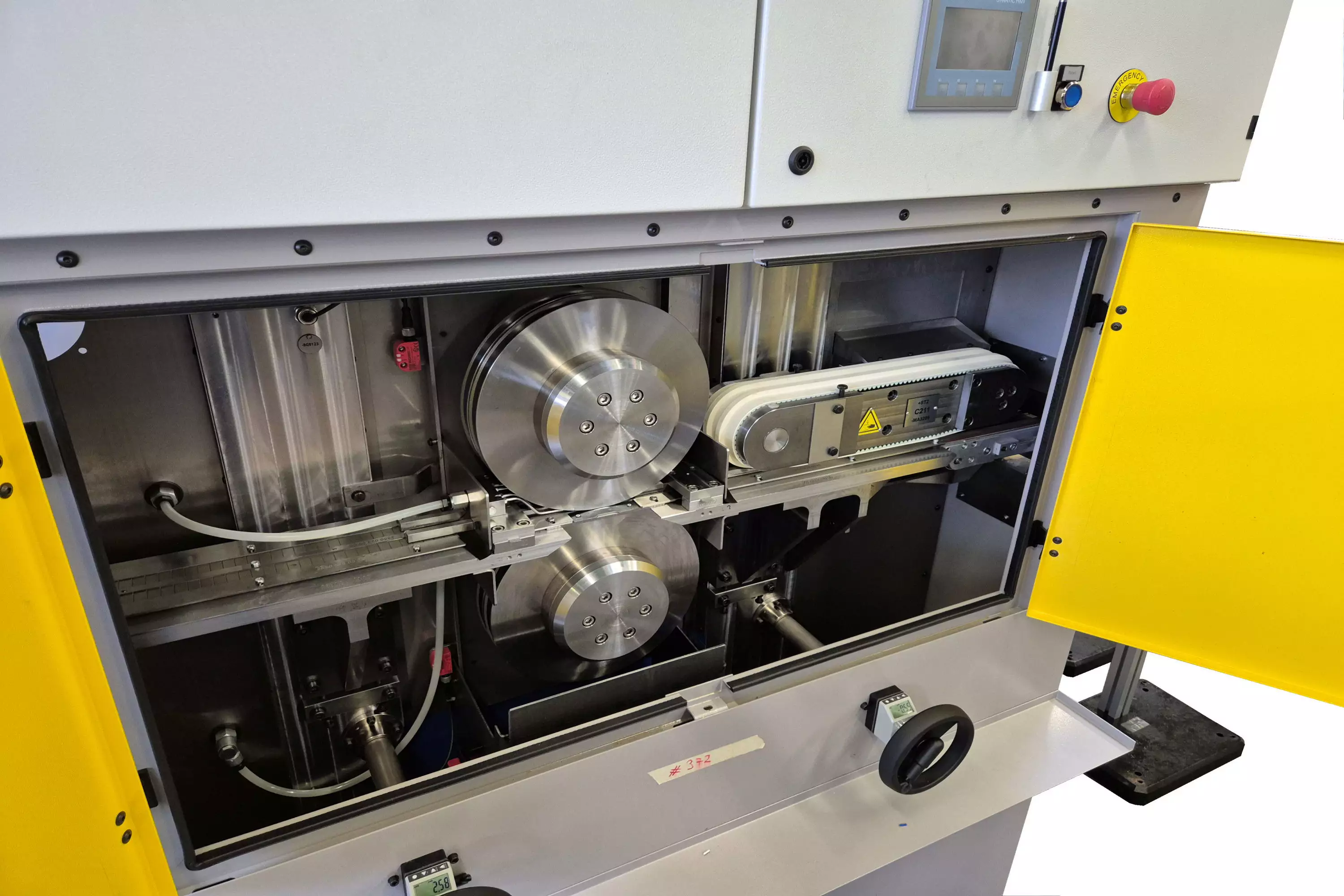

Continuous through feed grinder equipped with 2 horizontal spindles dedicated to continuous chamfering or internal and external profile grinding
Performances
Resolution 0.01 mm
High performance spindles, direct drive
Modular rigid frame of grey cast iron combined with prestressed concrete
Automatic servo

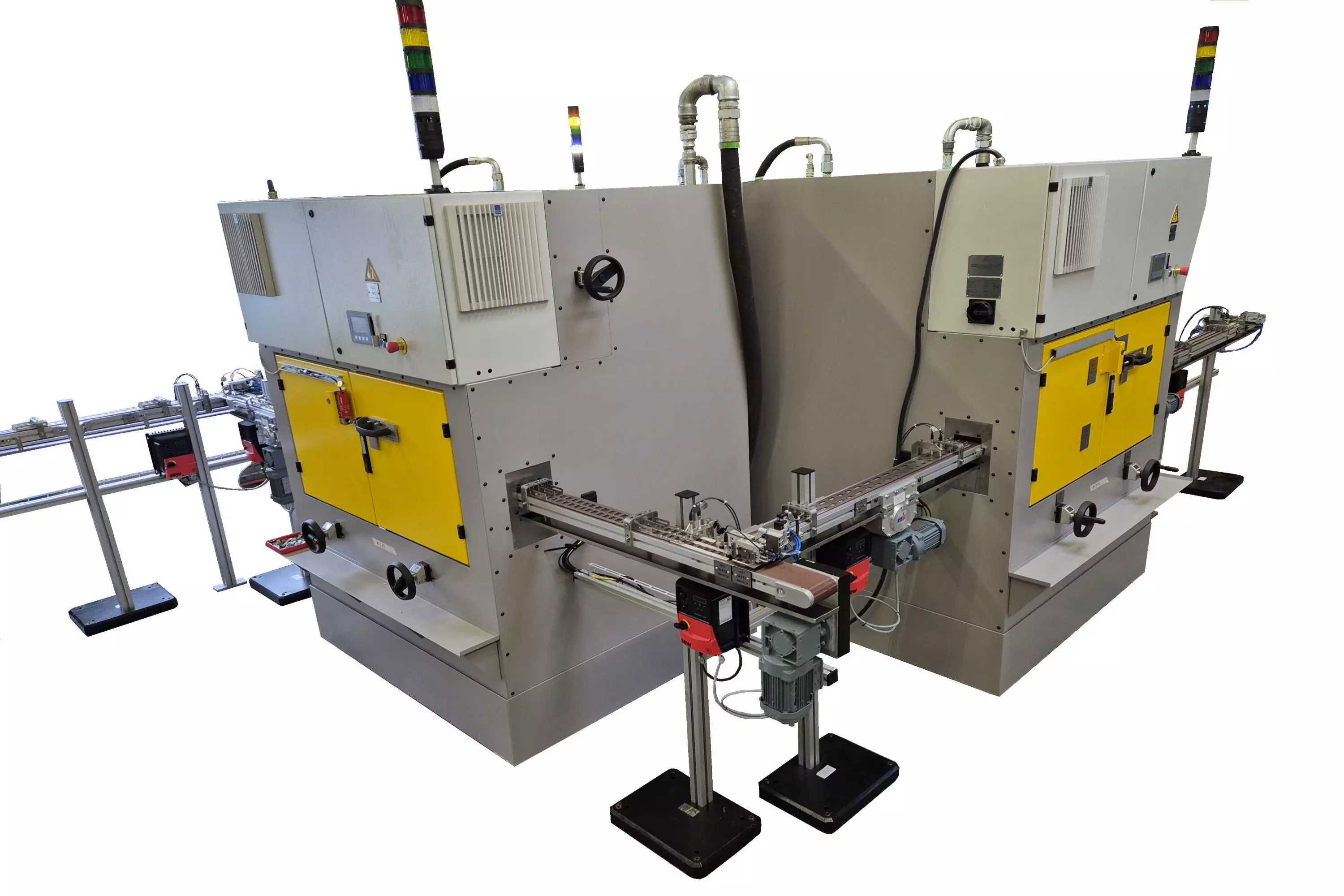

Automatic, semi-automatic or manual loading
Documents
Technical specifications
- Number of spindles 2
- Spindle ø140x450 mm
- Z-axis 50 mm
- Rotation speed 0-6000 rpm
- Power 15 kW
- Width 80 mm
- Height 40 mm
- Abrasive tools Diamond
- Grinding wheel ø300 mm
- Infeed 0-4000 mm/min
- Electrical control Siemens S7/1500/TIA
- Total weight 2.5 t
- Stock removal 2 mm
- Resolution 0.01 mm
