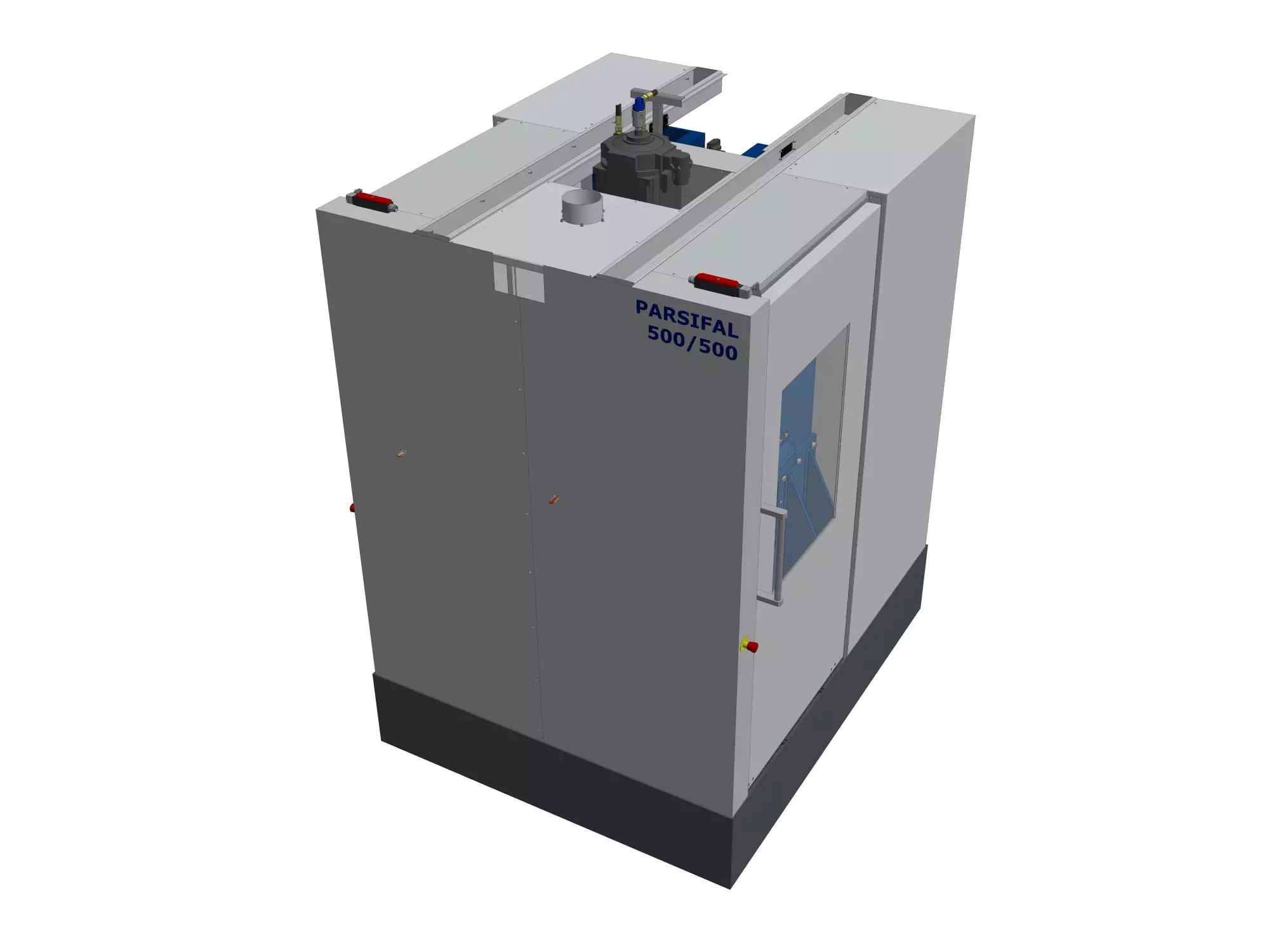

PARSIFAL 500/500

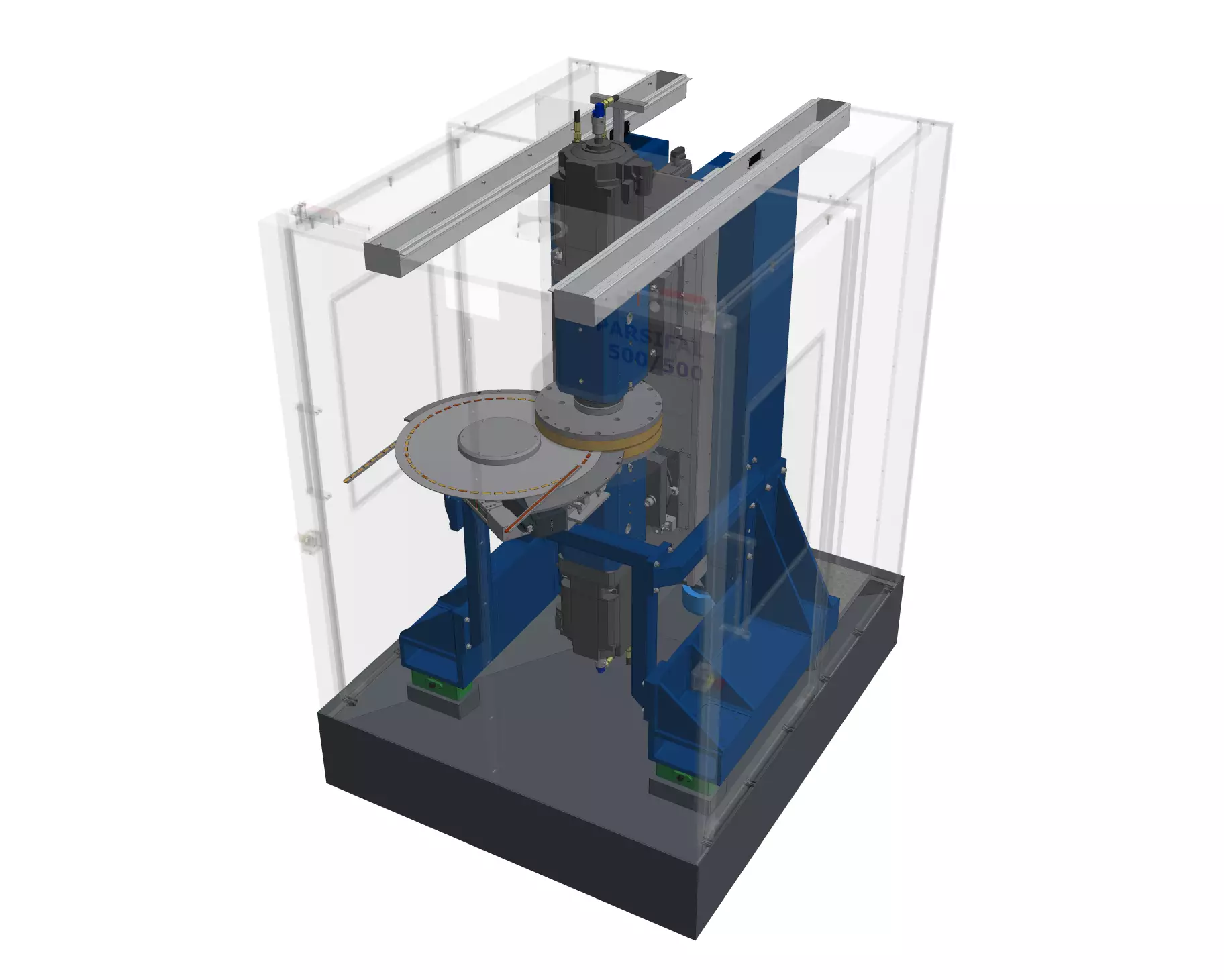

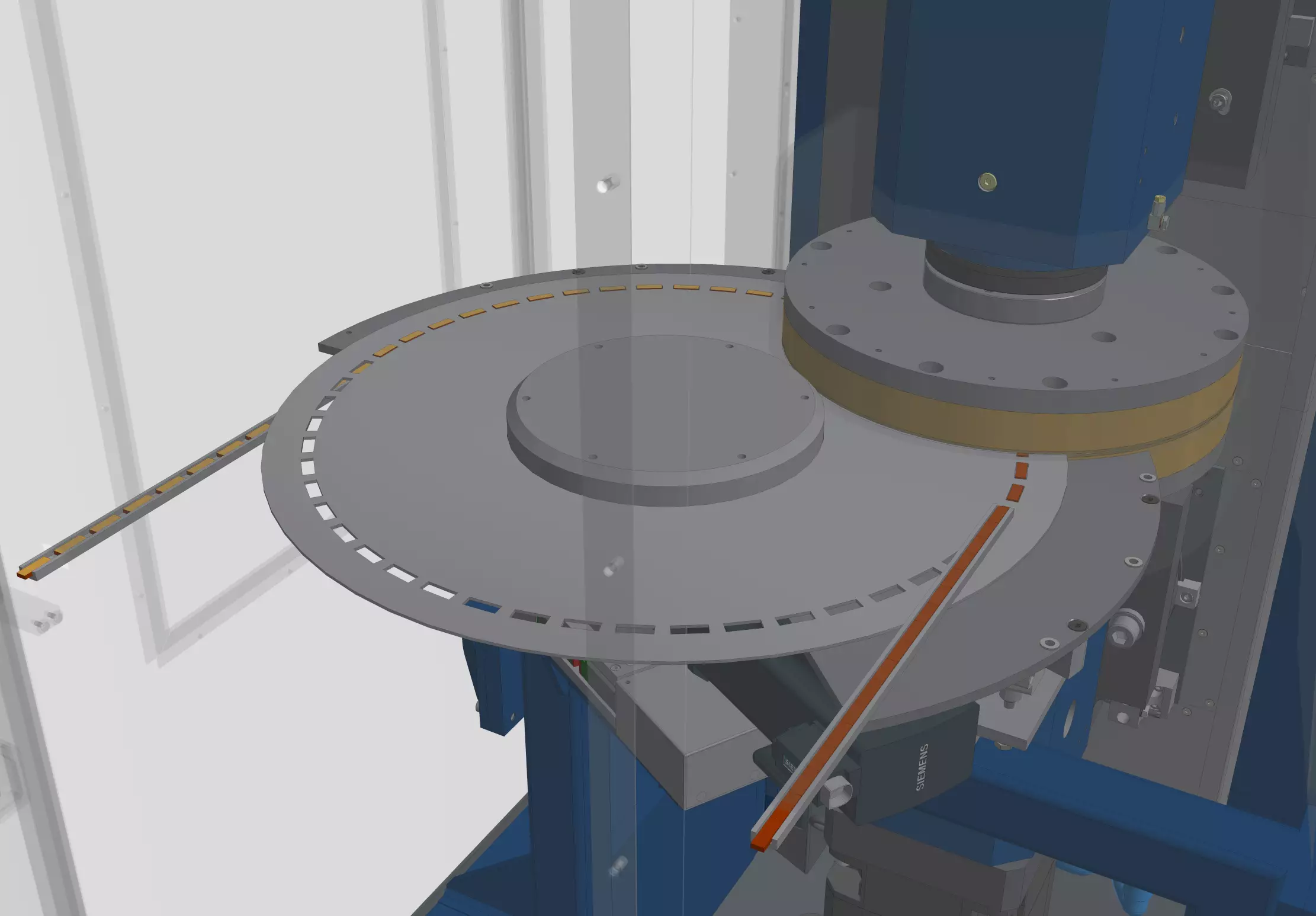

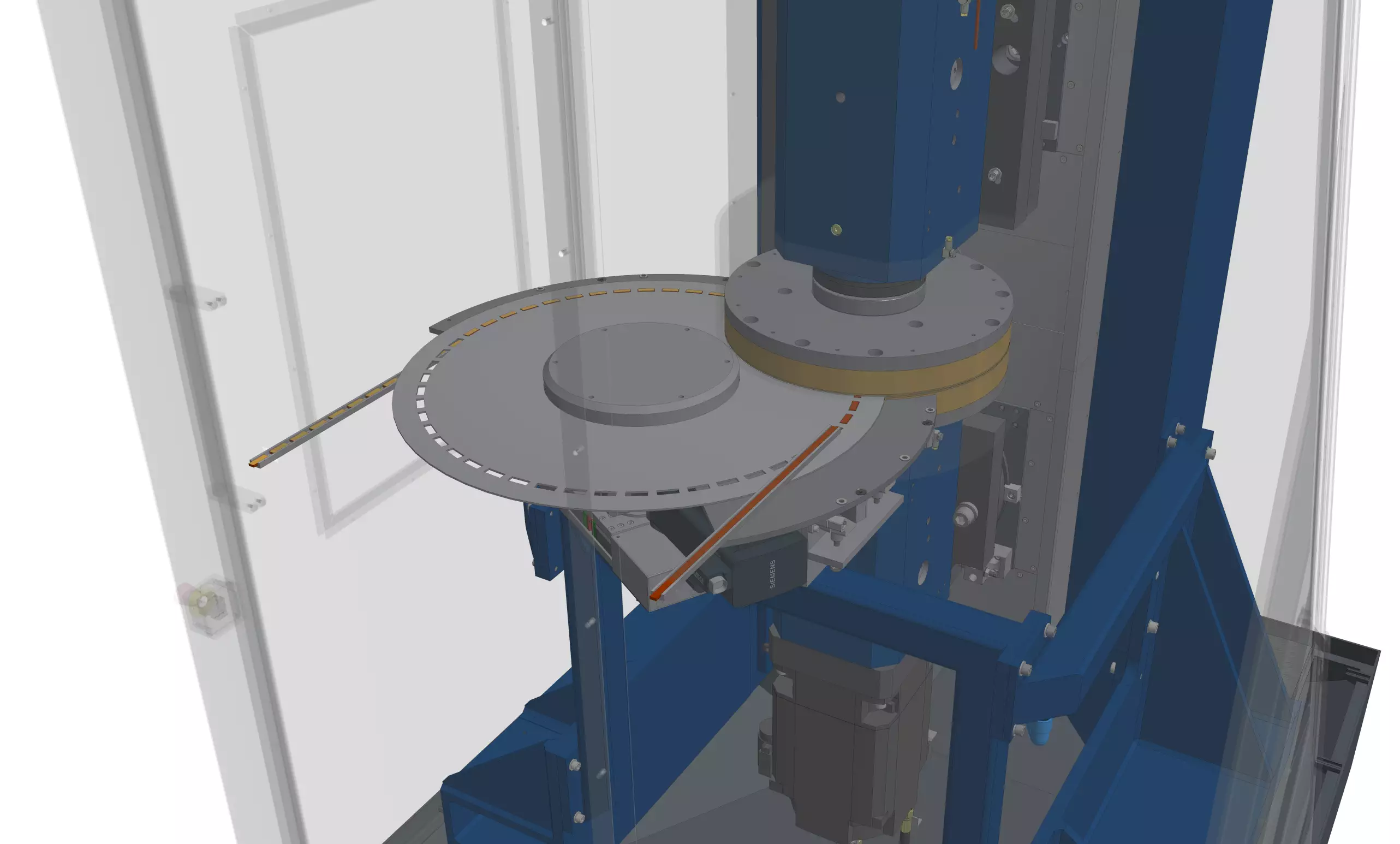

Continuous through feed double disc grinder equipped with a rotary table and 2 opposite vertical spindles
Performances
Resolution 0.001 mm
High performance spindles, direct drive
Modular rigid frame of grey cast iron combined with prestressed concrete
Measurement and automatic servo
Documents
Technical specifications
- Number of spindles 2
- Spindle 2x ø200x500 mm
- Z-axis 2x 120 mm
- Rotation speed 0-4500 rpm
- Power 11/28/35 kW
- Width 5-60 mm
- Height 1-20 mm
- Abrasive tools CBN/diamond/Al2O3
- Grinding wheel up to ø500 mm
- Infeed 0-4000 mm/min
- Electrical control Siemens S7/1500/TIA
- Total weight 4.5 t
- Stock removal up to 5 mm
- Resolution 0.001 mm
