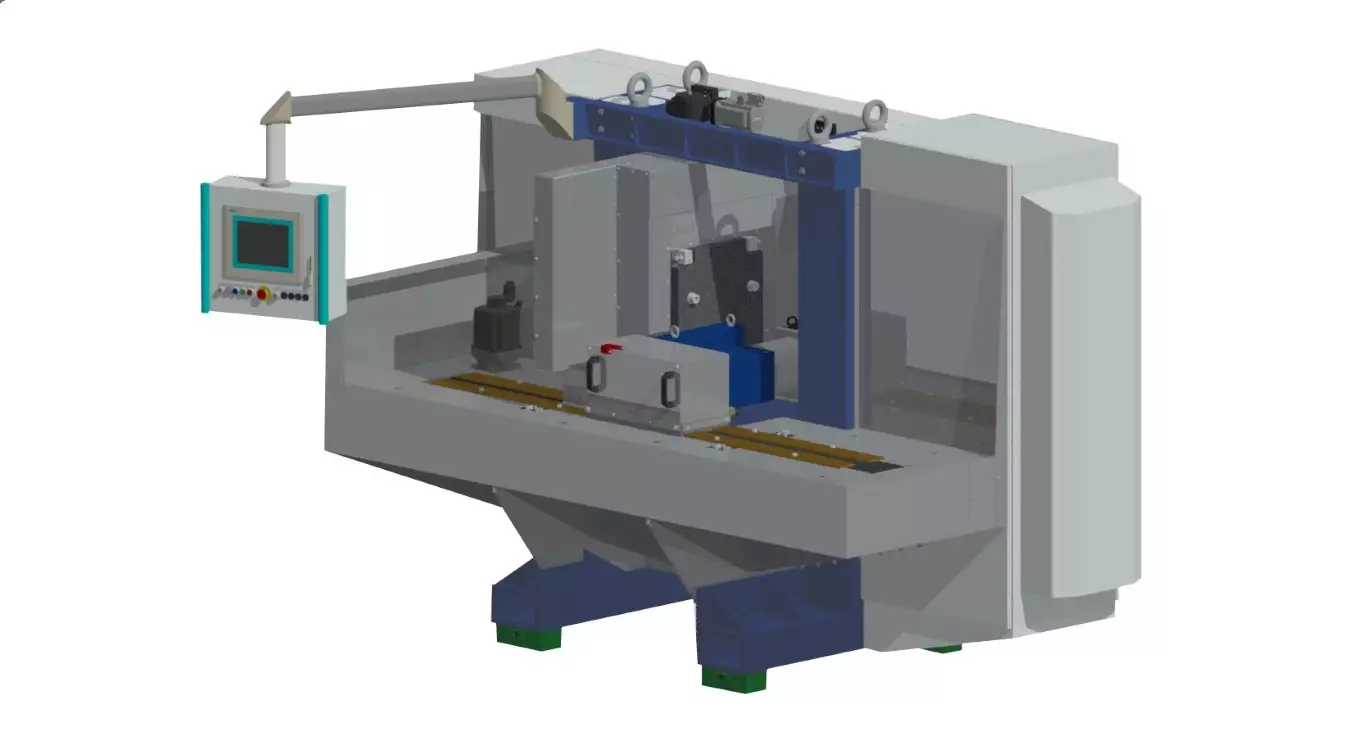

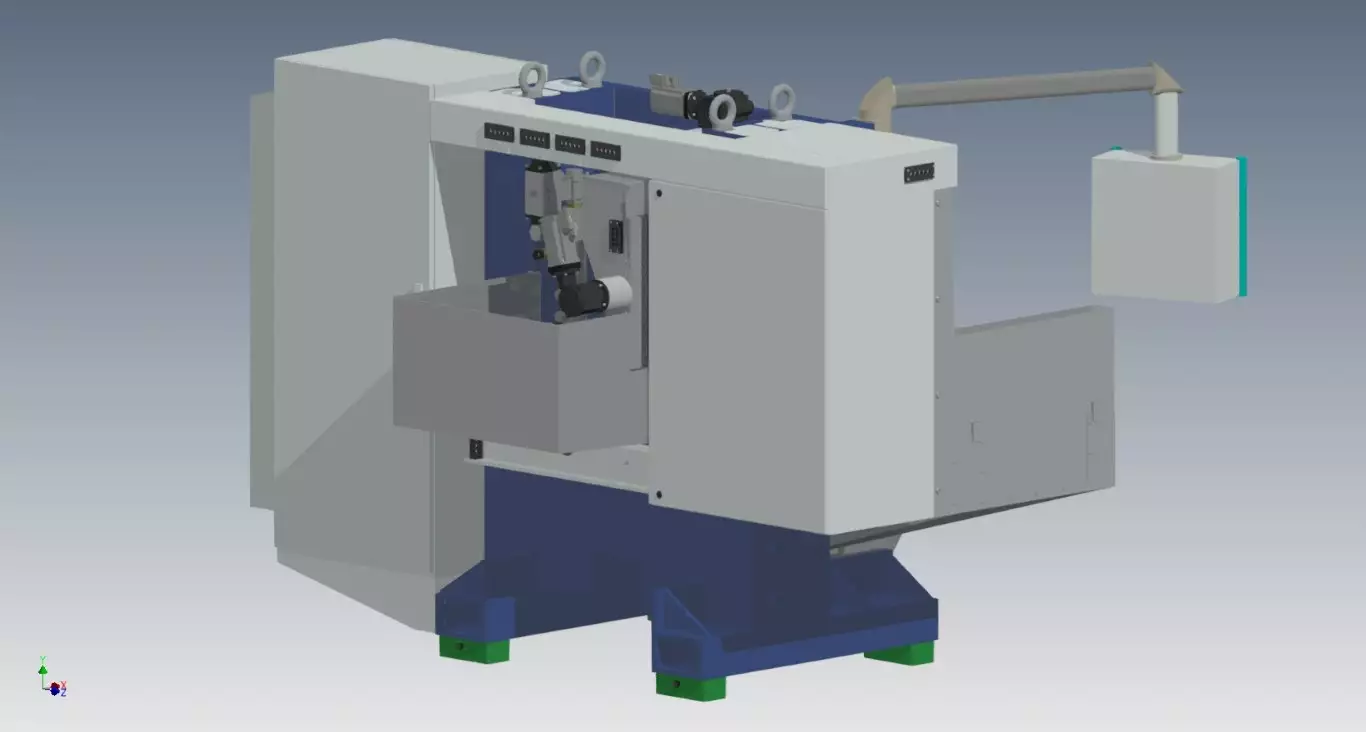

SIEGFRIED 180/500 TR

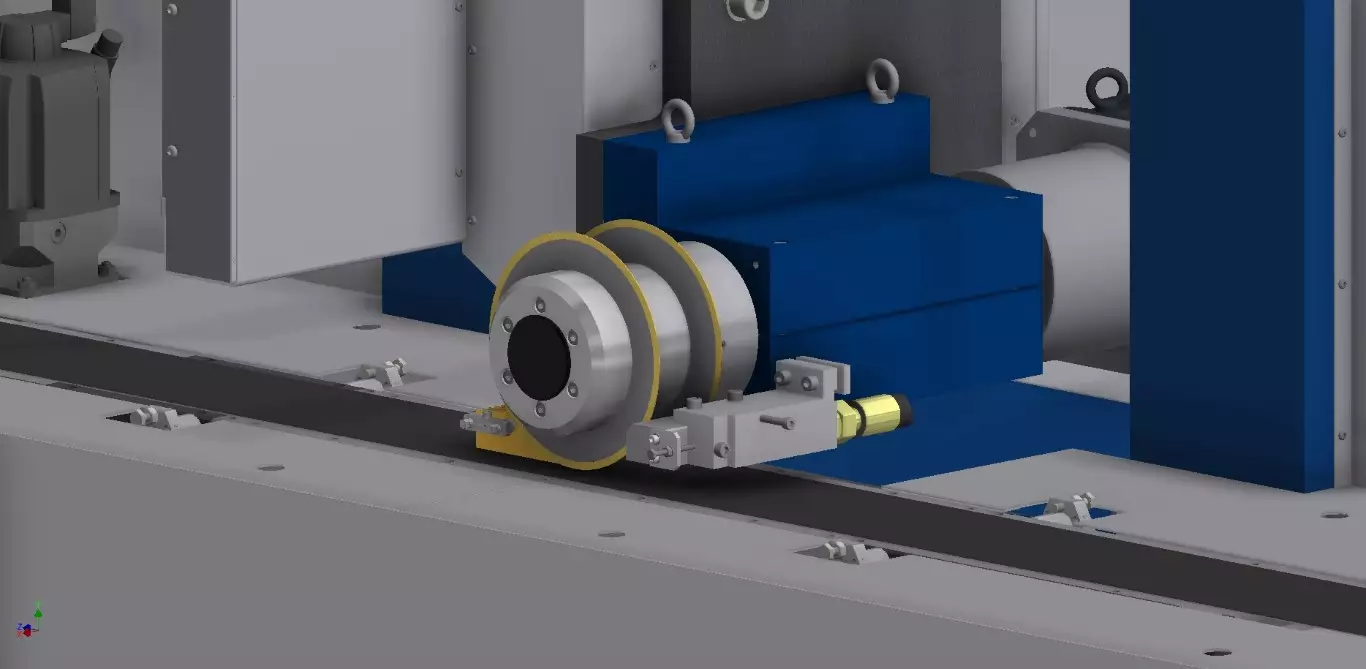

Tangential continuous through feed grinder with 1 horizontal spindle equipped with cutting discs
Performances:
Resolution 0.001 mm
High performance spindles, direct drive
Modular rigid frame of steel combined with prestressed reinforced concrete
Automatic, semi-automatic or manual loading
Documents
Technical specifications
- Number of spindles 1
- Spindle ø140x450 mm
- Z-axis 120 mm
- Rotation speed 0 - 4000 rpm
- Power 11 kW
- Width 180 mm
- Height 100 mm
- Abrasive tools CBN / Diamond / Al2O3
- Grinding wheel ø250 mm
- Infeed 0 - 4000 mm/min
- Electrical control Siemens S7/1500/TIA
- Total weight 3.5 t
- Stock removal Cutting mm
- Resolution 0.001 mm
