ISOLDE 500/500 + brushing

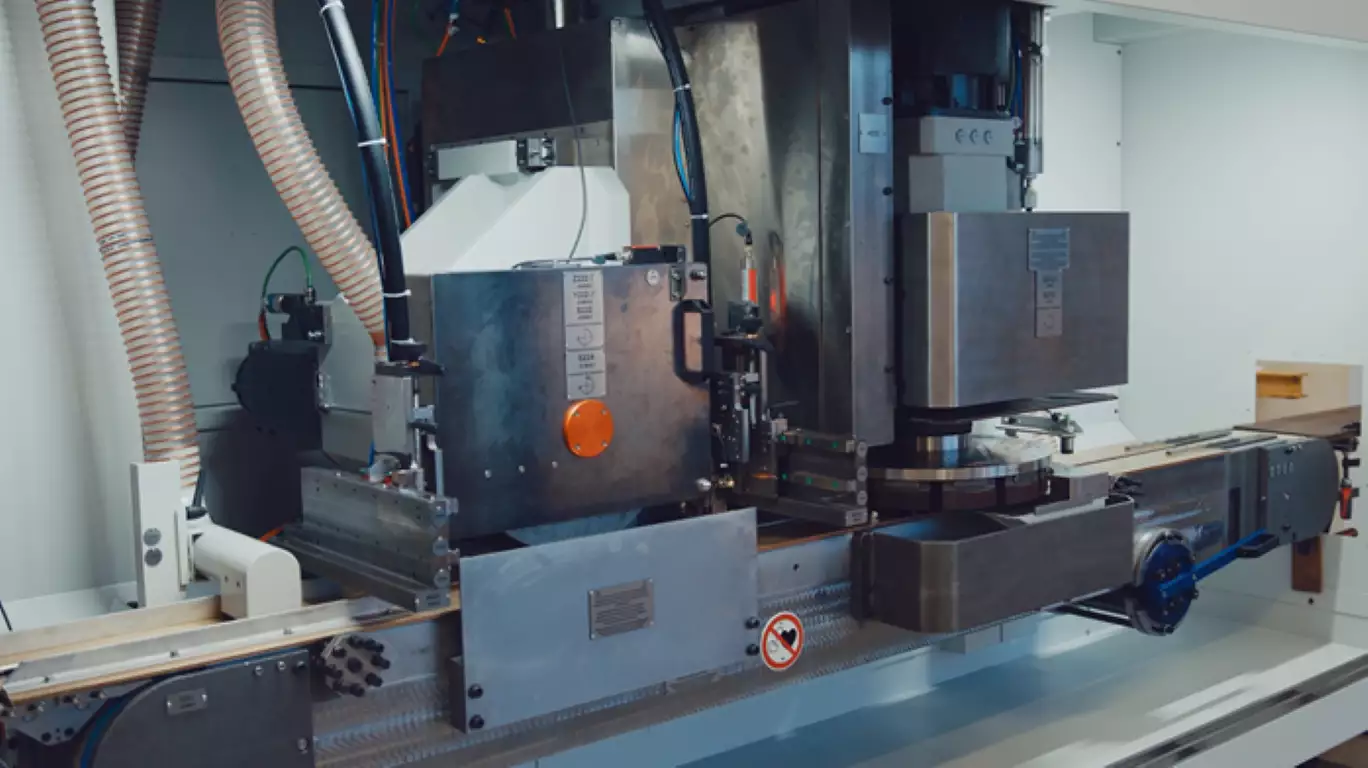

Continuous through feed grinder equipped with 1 vertical spindle, 1 horizontal spindle and 1 planetary brushing station



Performances

Resolution 0.001 mm
High performance spindles, direct drive
Modular rigid frame of grey cast iron combined with
prestressed concrete
Measurement and automatic servo

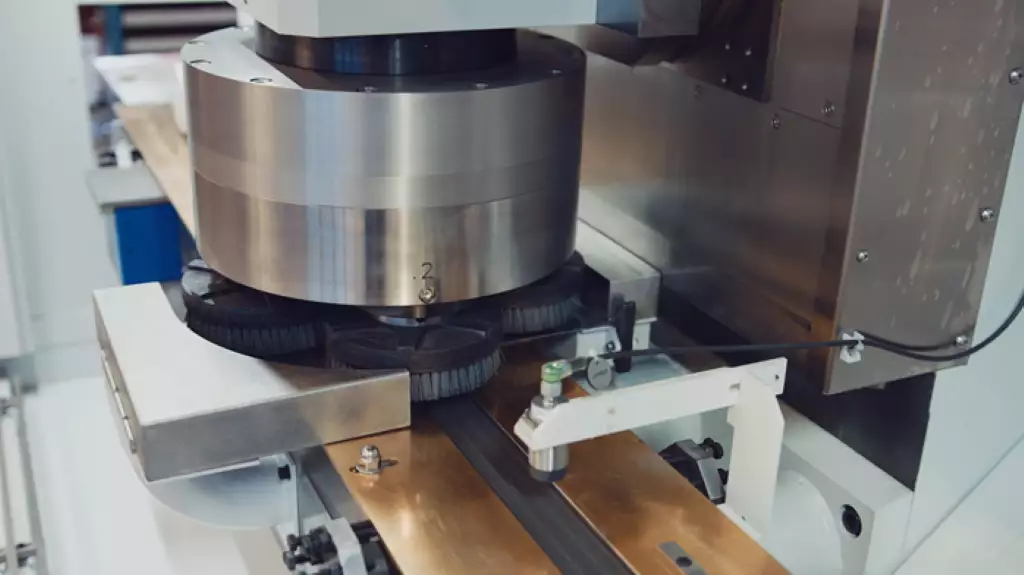

Additional brushing module
Automatic, semi-automatic or manual loading








Documents

Technical specifications


  • Number of spindles 3
  • Spindle ø200x500 mm
  • Z-axis 120 mm
  • Rotation speed 0 - 4500 rpm
  • Power 28 / 11 / 15 kW
  • Width 150 mm
  • Height 80 mm
  • Abrasive tools CBN/diamond/Al2O3
  • Grinding wheel ø500 / ø400 mm
  • Infeed 0 - 6000 mm/min
  • Electrical control Siemens S7/1500/TIA
  • Total weight 8-10 t
  • Stock removal 0.01 - 0.15 mm
  • Resolution 0.001 mm
