Brushing machine I

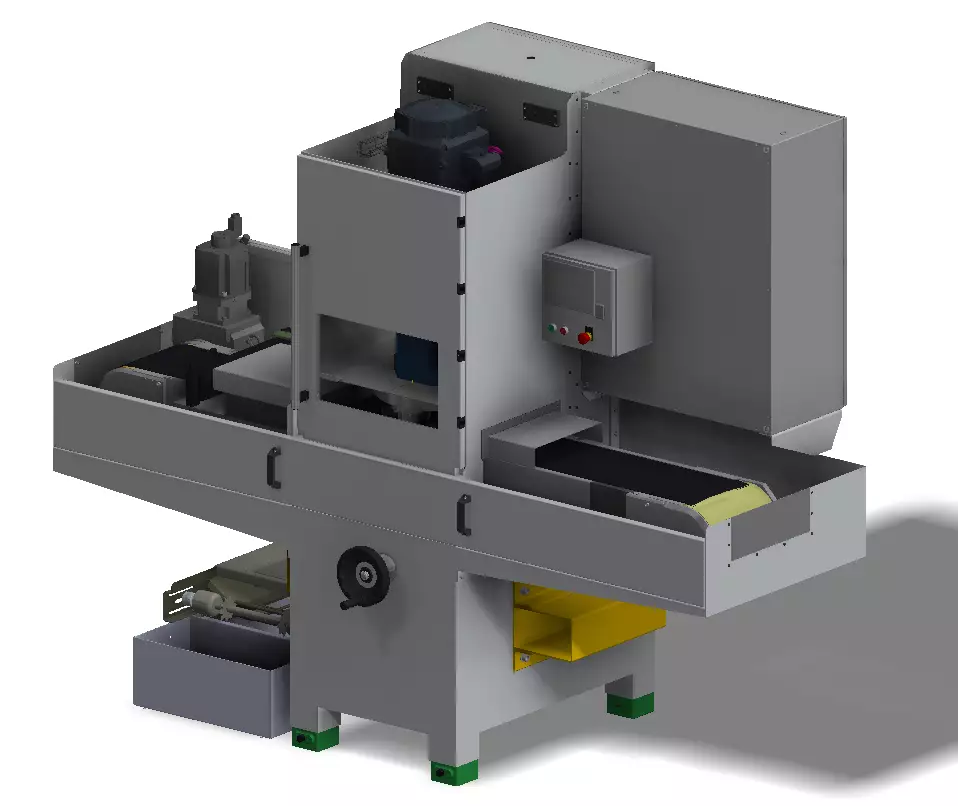

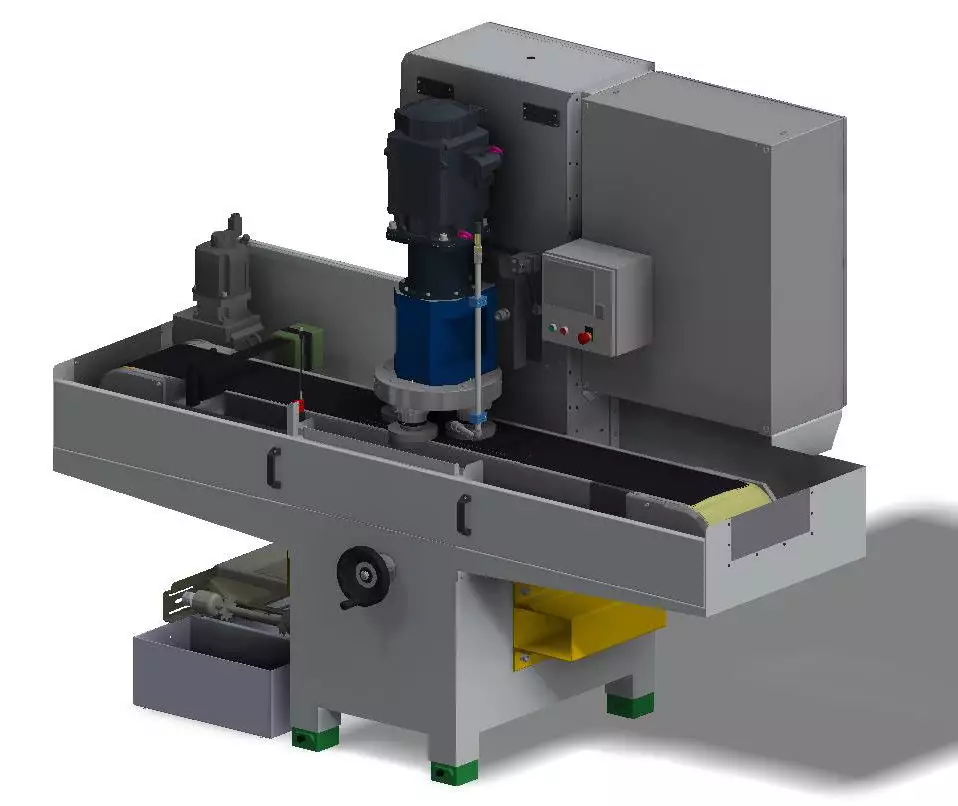

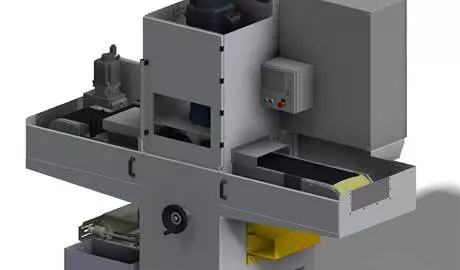

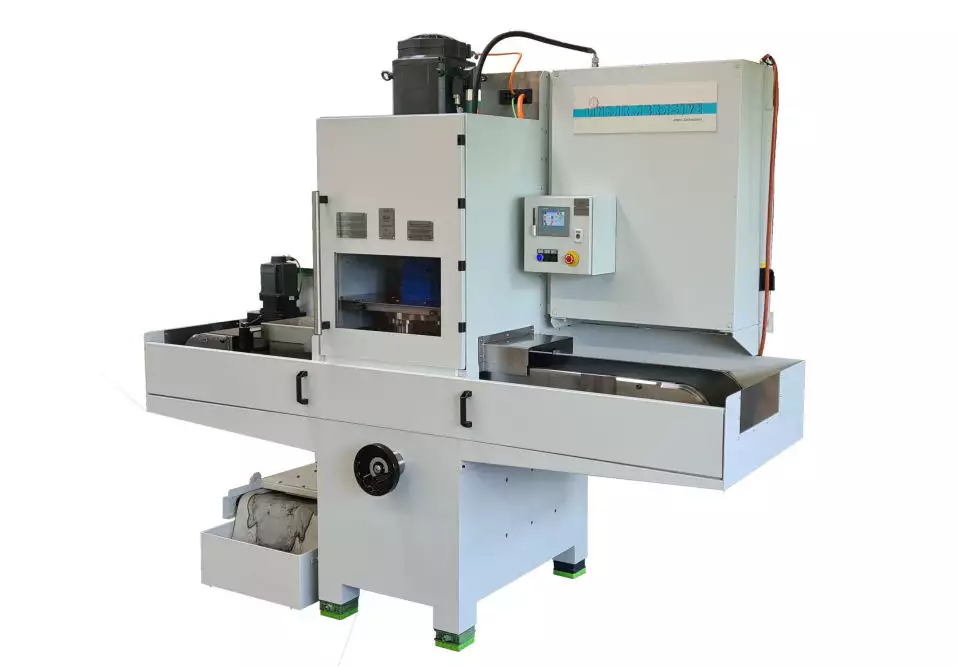

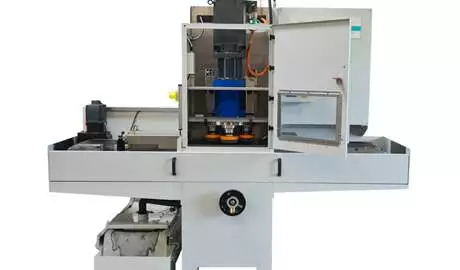

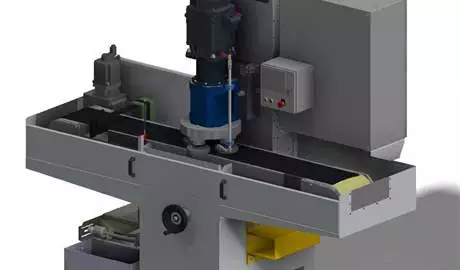

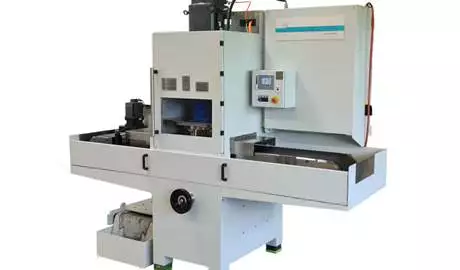

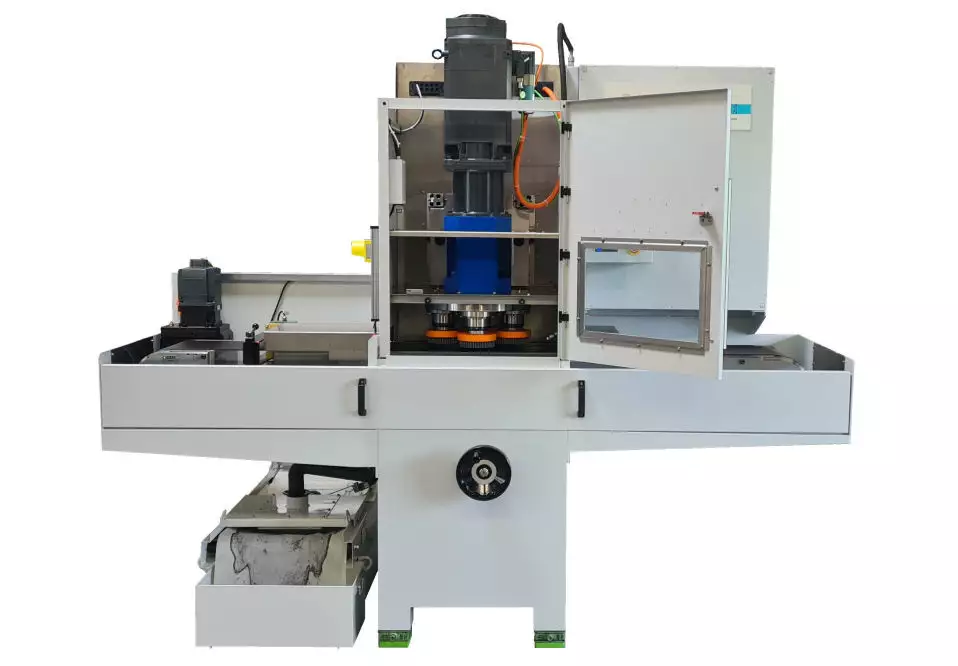

Continuous brushing machine, can be equipped with up to 2 vertical stations


Documents

Technical specifications


  • Number of spindles 4
  • Spindle 4x ø50x125 mm
  • Z-axis 120 mm
  • Rotation speed Planetary 0-200 tr/min, brushes 0-2000 tr/min, rapport 1:10
  • Power 24 kW
  • Width 180 mm
  • Height 80 mm
  • Abrasive tools Brushes , Al2O3, céramique, diamant
  • Grinding wheel 4x ø165 mm
  • Infeed 0-6000 mm/min
  • Electrical control Siemens S7/1200/TIA
  • Total weight 3 t
  • Stock removal - mm
  • Resolution - mm
