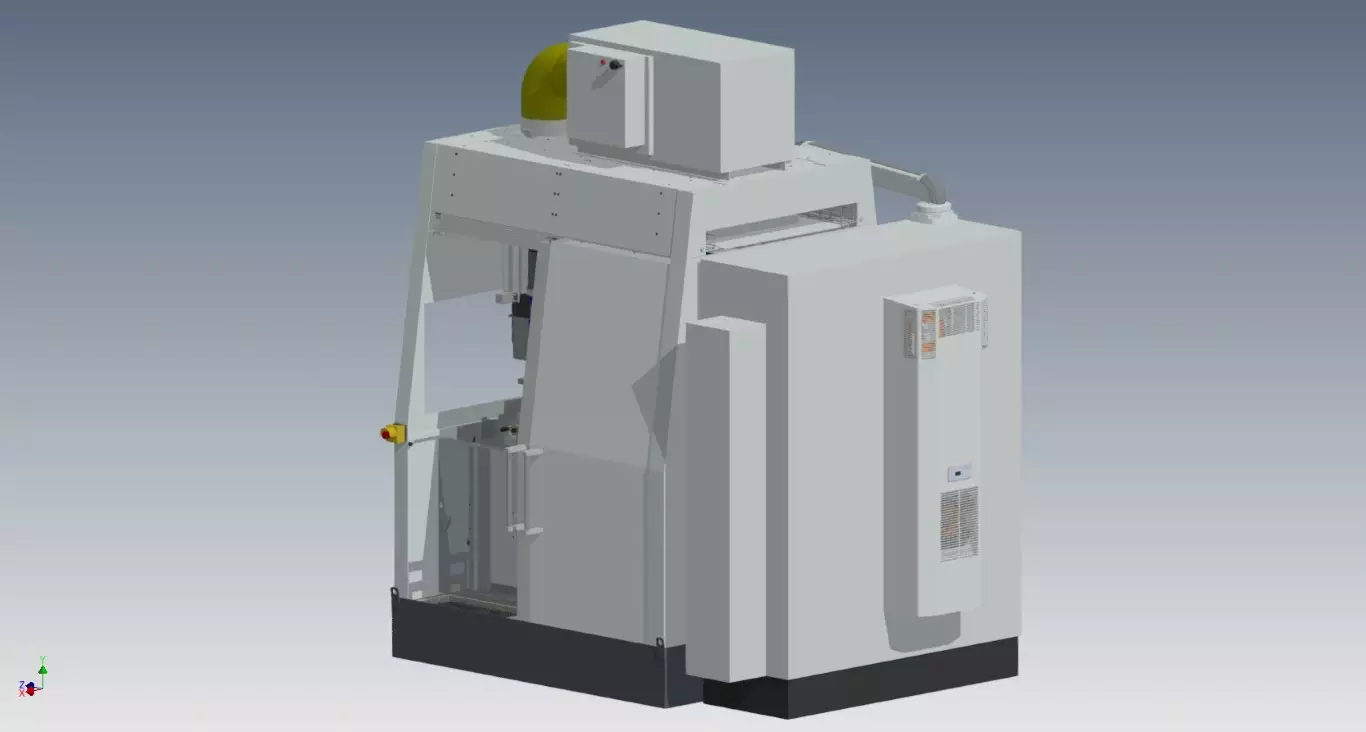

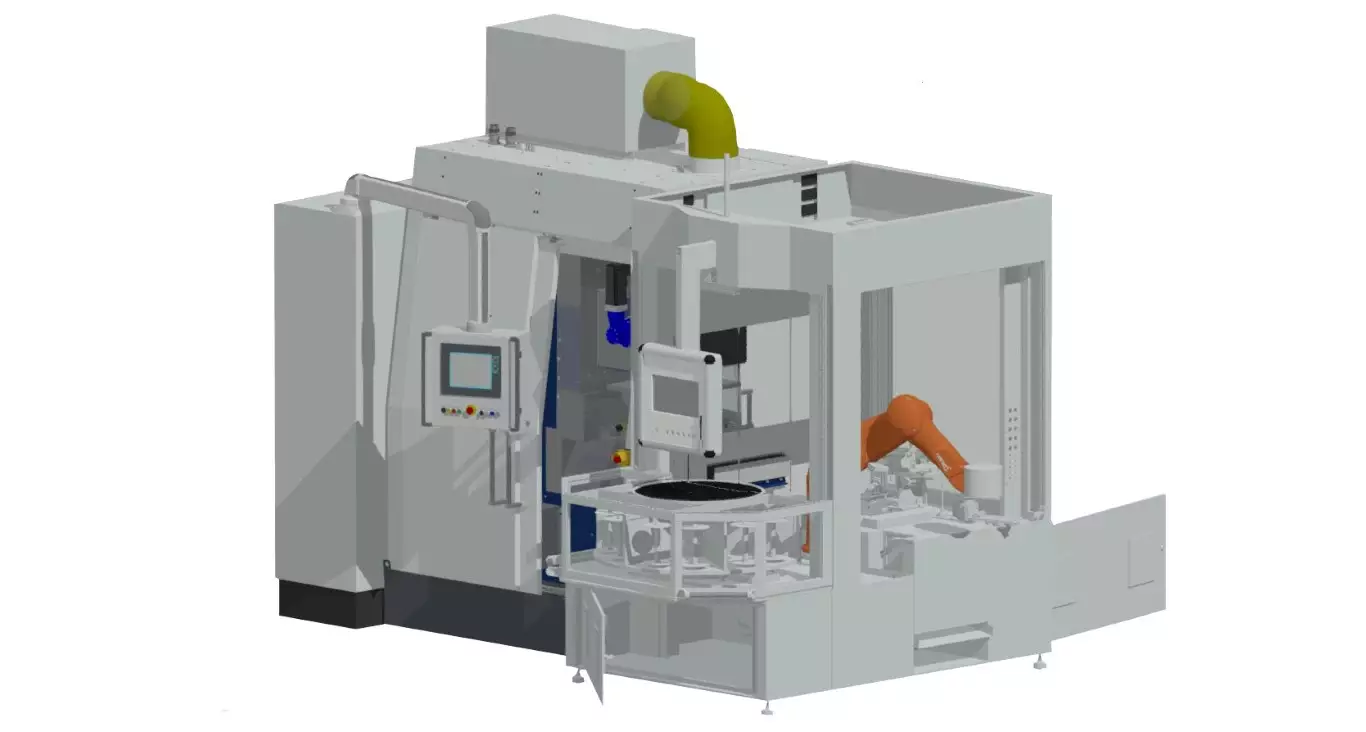

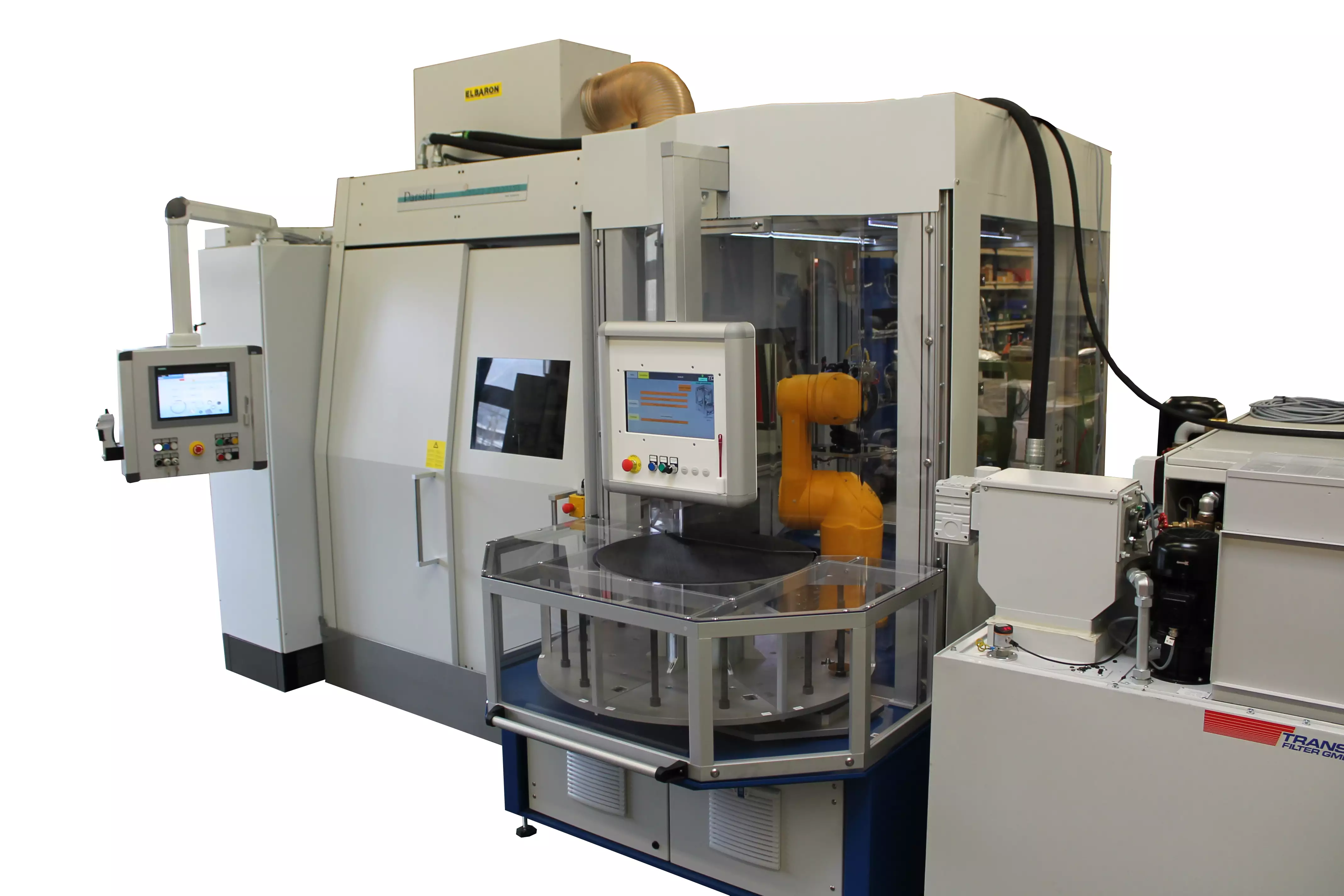

PARSIFAL 150/400
Plunge grinder, cycle-by-cycle, equipped with 1 vertical spindle + 1 mandrel
Performances
Resolution 0.001 mm
High performance spindles, direct drive
Modular rigid frame of steel combined with prestressed concrete
Measurement and automatic servo

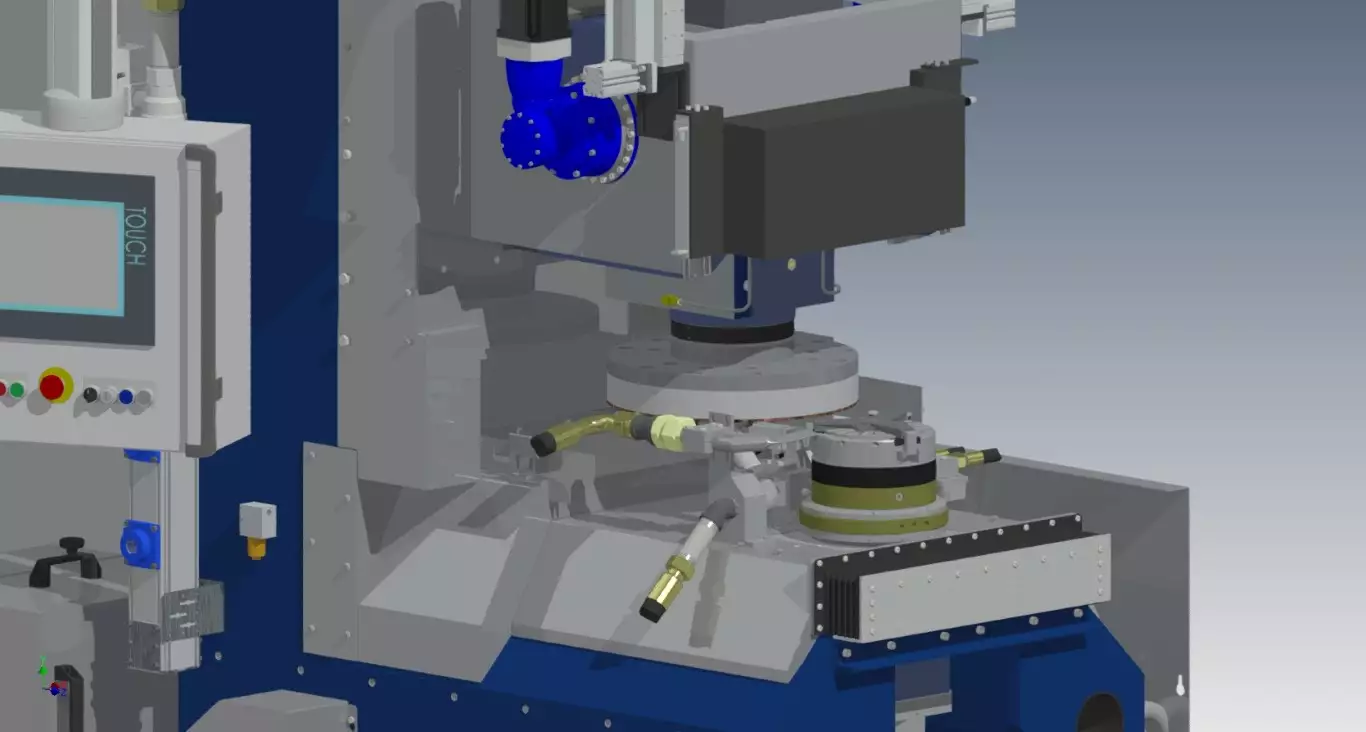

Vertical tilt spindle
ø200 mm mandrel mounted on a horizontal slide
Automatic, semi-automatic or manual loading
Documents
Technical specifications
- Number of spindles 2
- Spindle ø200x500, mandrel ø100x300 mm
- Z-axis 120 mm
- Rotation speed 0 - 4000 rpm
- Power 27, mandrel 3 kW
- Width Max. ø160 mm
- Height 0.60 - 30 mm
- Abrasive tools CBN / diamond / Al2O3
- Grinding wheel ø400, mandrel ø170 mm
- Infeed Spindle tilt max. 10°
- Electrical control Siemens S7 / 1500/ TIA
- Total weight 5 t
- Stock removal 2 mm
- Resolution 0.001 mm
